At a Glance
Cooking heavy meals leaves your kitchen filled with lingering odors, smoke, and airborne grease. A weak or poorly sized ventilation fan makes the problem worse by failing to capture the mess before it spreads.
Letting grease settle ruins your cabinetry and hurts your indoor air quality. Finding the exact right under cabinet range hood clears the air instantly, and Urner’s has the local expertise to match you with the perfect fit.
- Standard width guidelines for your specific cooking surface.
- Clearance height requirements for gas and electric setups.
- How to calculate the exact ventilation power your kitchen requires.
Find the Perfect Under Cabinet Range Hood
Upgrade your kitchen cleanup with top dishwashers at Urner's. Shop now and save!
Shop Range HoodsThe Golden Rule of Range Hood Sizing
The width of your cooking surface dictates the minimum width of your under cabinet range hood. Standard cooktops measure 24, 30, or 36 inches across. Your ventilation hood must span that exact distance at a minimum. Sizing up by 6 inches offers the best capture area for rising smoke. However, under-cabinet installations often restrict you to an exact match due to fixed cabinetry layouts. Squeezing a larger hood into a restricted cabinet opening rarely works without a costly remodel. On the showroom floor, we always remind customers to measure the physical opening between the upper cabinets, not just the stove below it. Even a quarter-inch trim piece can block a new hood.
Matching your cooktop width provides a clean, symmetrical look while working perfectly within existing cabinet limitations. Upgrading to a wider hood captures more grease and smoke but requires extra wall space and potential remodeling.
Pros and Cons of a Under Cabinet Range Hood
Pros
Superior Capture
Captures spreading smoke and steam more effectively.
Protects Cabinetry
Keeps surrounding upper cabinets cleaner.
Design Upgrade
Delivers a professional, high-end aesthetic.
Cons
Cabinet Modifications
Requires removing or modifying existing upper cabinets.
Strict Tolerances
Demands more careful measurement of the installation gap.
Higher Investment
Costs more for the physical unit and the professional installation.
How to Measure for Your New Range Hood
Grab your tape measure before falling in love with a specific model. Watch out for hidden obstacles because cabinet hinges, decorative trim, and uneven drywall often shrink your actual usable space. To guarantee a perfect fit, follow these strict cabinet space measurement steps:
- Measure the physical width of the cooking surface from left to right.
- Measure the exact distance between your upper left and right cabinets.
- Measure the vertical space above the stove up to the bottom of the cabinet.
- Measure the depth of the cooking surface to guarantee full coverage.
Ventilation Clearances and Power Requirements
| Feature | Electric Ranges | Gas Ranges |
|---|---|---|
| Minimum Clearance Height | 20 inches | 24 inches |
| Maximum Mounting Height | 24 inches | 30 inches |
| Recommended Installation Range | 20 to 24 inches | 24 to 30 inches |
| General CFM Rule | 100 CFM per 10 inches of width | 100 CFM per 10,000 BTUs |
Calculating the Right CFM for Your Kitchen
Your kitchen exhaust fan power directly correlates to your stove's heat output. We measure this airflow in cubic feet per minute (CFM). An electric range clearance setup needs about 100 CFM for every 10 inches of stove width. Gas stoves burn hotter and require a different formula. Divide the total British Thermal Units (BTU) of all your gas burners by 100. A stove producing 40,000 BTUs needs at least a 400 CFM under cabinet range hood. High-heat cooking styles, like frequent wok frying or searing, demand even stronger exhaust power to protect your indoor air quality.
Read more:
Learn How to Clean a Greasy Range Hood with These Easy Steps
The Modern and Classic Bosch Ventilation Hoods

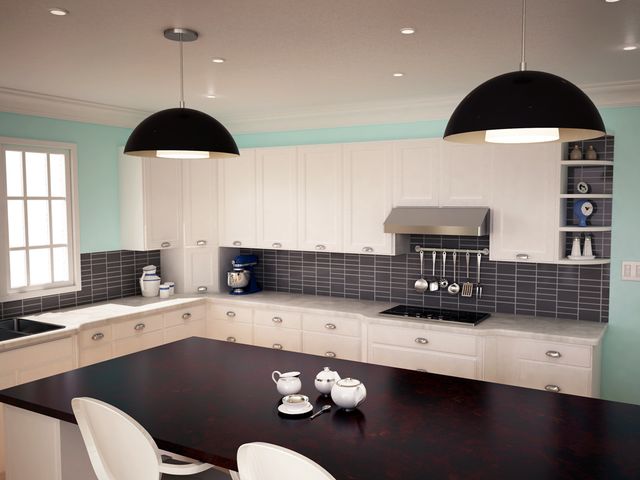

Choosing the Best Exhaust System for Your Layout
Ducted ventilation pushes smoke, steam, and odors completely out of your house through an exterior wall or roof. Ductless, or recirculating, setups pull air through a filter and push it back into the kitchen. Your home's existing ductwork usually dictates which option makes sense. An under cabinet range hood easily supports either configuration. If you evaluate ducted vs ductless ventilation and choose a ductless system, remember to replace the charcoal filters every three to six months to maintain proper grease trapping.
Read more:
Frigidaire Gallery Refrigerator Reviews: 4 Things to Know Before You Buy
Professional Appliance Installation

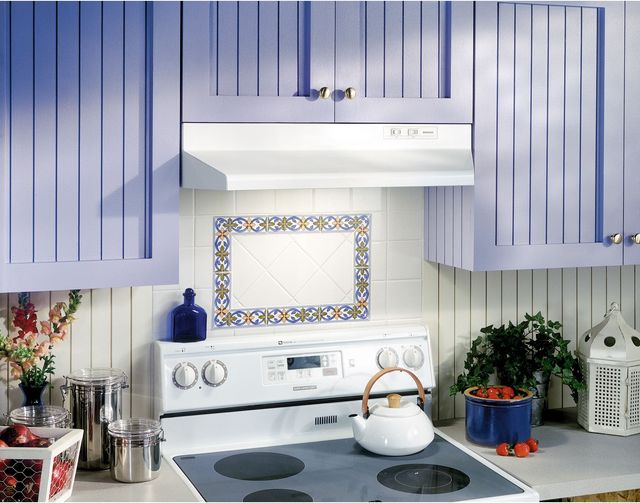

Top Rated Ventilation Solutions
This sleek under cabinet range hood maximizes your kitchen space while delivering high-performance ventilation. The low-profile design tucks perfectly beneath your upper cabinets, keeping your sightlines completely open. A multi-speed exhaust fan rapidly removes grease, smoke, and odors, actively protecting your cabinetry from harmful moisture damage. You get a beautiful modern aesthetic paired with easy-to-clean filters and bright energy-efficient lighting for a vastly improved cooking workspace.
Broan 24" White Ducted Under Cabinet Range Hood
Shop Broan 24" White Ducted Under Cabinet Range Hood
This compact under cabinet range hood provides excellent ventilation power for smaller kitchens. The 24-inch profile fits perfectly above standard apartment-sized stoves, clearing the air of grease and smoke quickly. Its two-speed fan gives you precise control over airflow, while the classic white finish blends naturally into light cabinetry. The built-in lighting brightly illuminates your cooking surface for safer meal prep. You will appreciate the easy-to-clean aluminum mesh filter that traps grease before it coats your walls. It is a highly dependable, budget-friendly ventilation upgrade.
Top Features
- Two-Speed Fan: Offers simple, effective control over the exhaust power during light or heavy cooking.
- Aluminum Mesh Filter: Captures airborne grease efficiently and removes easily for quick cleaning.
- Integrated Lighting: Brightens the stovetop to improve visibility and safety while preparing meals.
Zephyr Gust 36" Stainless Steel Under Cabinet Range Hood
Shop Zephyr Gust 36" Stainless Steel Under Cabinet Range Hood
The Zephyr Gust brings professional-grade ventilation into your residential kitchen. This 36-inch under cabinet range hood features a robust multi-speed exhaust fan that rapidly removes heavy smoke and pungent odors. The sleek stainless steel finish offers a premium look that resists daily wear and tear. You get incredibly powerful airflow without the deafening noise typical of high-performance hoods. The heavy-duty baffle filters collect grease effectively and are entirely dishwasher safe, minimizing your maintenance time. It protects your upper cabinets from heat and moisture damage.
Top Features
- Professional Baffle Filters: Traps heavy grease efficiently and pops right into the dishwasher for cleaning.
- Multi-Speed Exhaust Fan: Quickly adapts to handle everything from gentle simmering to high-heat searing.
- Quiet Operation: Maintains a peaceful kitchen environment even when running at maximum exhaust capacity.

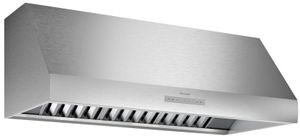

Thermador Pro Harmony 48" Stainless Steel Under Cabinet Range Hood
Shop Thermador Pro Harmony 48" Stainless Steel Under Cabinet Range Hood
Built for serious culinary enthusiasts, the Thermador Pro Harmony pairs raw power with a refined aesthetic. This 48-inch under cabinet range hood easily handles the intense heat and smoke produced by large luxury gas ranges. The commercial-style baffle filters completely capture airborne grease, preventing sticky residue from accumulating on your kitchen walls. Halogen lighting floods your cooking surface with bright, clear light. The sleek stainless steel canopy provides a striking visual upgrade while effectively shielding your custom cabinetry from long-term moisture and heat damage.
Top Features
- Commercial-Style Filters: Delivers maximum grease capture for heavy-duty cooking and simple maintenance.
- Halogen Lighting: Provides brilliant, focused illumination directly over your expansive cooking surface.
- High-Heat Capacity: Safely manages the intense exhaust demands of professional-grade gas burners.

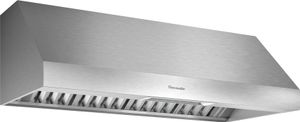

Thermador Pro Grand 60" Stainless Steel Under Cabinet Range Hood
Shop Thermador Pro Grand 60" Stainless Steel Under Cabinet Range Hood
The Thermador Pro Grand is the ultimate ventilation solution for massive luxury ranges. Spanning an impressive 60 inches, this under cabinet range hood dominates grease, steam, and smoke across multiple cooking zones simultaneously. It utilizes commercial-grade components to protect your kitchen's air quality during heavy entertaining. The low-profile design maximizes your kitchen space while still delivering high-performance ventilation. Energy-efficient lighting perfectly illuminates massive griddles and burners below. The durable stainless steel construction brings a rugged, professional appearance right into the center of your home.
Top Features
- Expansive 60-Inch Canopy: Covers massive dual-oven professional ranges for total smoke capture.
- Heavy-Duty Construction: Withstands extreme heat and daily use with premium stainless steel materials.
- Advanced Grease Management: Keeps your kitchen air pure by trapping airborne particles instantly.
Vent-A-Hood 42" Stainless Steel Under Cabinet Range Hood
Shop Vent-A-Hood 42" Stainless Steel Under Cabinet Range Hood
Experience unparalleled exhaust efficiency with this Vent-A-Hood 42-inch model. It relies on advanced technology to extract smoke and odors rapidly without relying on messy, restrictive baffle filters. This under cabinet range hood operates with incredible quietness, allowing you to converse easily while cooking. The sleek stainless steel canopy tucks neatly under your cabinets, preserving a clean kitchen layout. It features an incredibly easy-to-clean interior that saves you time after heavy meal prep. You get phenomenal airflow, bright lighting, and an elegant modern profile.
Top Features
- Filterless Exhaust Design: Uses centrifugal force to extract grease, eliminating the need to scrub baffles.
- Whisper-Quiet Fan: Operates at low sound levels so you can cook and entertain comfortably.
- Sleek Low-Profile Fit: Mounts flush beneath cabinetry to maintain an open, unobstructed kitchen view.
Ready to Improve Your Kitchen Air Quality?
Finding the right under cabinet range hood protects your home's air quality and preserves your beautiful cabinetry. Measuring carefully and choosing the proper CFM rating guarantees a clean, smoke-free environment while you cook. Ready to improve your kitchen air quality? Stop by Urner's today to explore our premium ventilation options and browse our complete lineup of under cabinet range hoods. Our local showroom experts provide personalized guidance, and our professional installation team handles the heavy lifting to deliver a perfect fit every time.
Frequently Asked Questions about Under Cabinet Range Hoods
The standard sizes for an under cabinet range hood are 24, 30, and 36 inches to match typical cooking surfaces. These dimensions correspond directly to common stove widths to capture rising steam effectively.
Your vent hood does not strictly need to be wider than your cooktop, but sizing up by six inches captures grease more efficiently. An exact width match remains the most common choice due to fixed upper cabinet dimensions.
An under cabinet hood should be mounted between 24 and 30 inches above an electric stove, or up to 36 inches above a gas stove. Placing the ventilation unit within this specific range safely captures exhaust without risking heat damage.
You need 100 CFM of ventilation power for every 10,000 BTUs your gas range produces. A high-output gas range producing 50,000 total BTUs requires an under cabinet range hood rated for at least 500 CFM.
You can absolutely install a 36 inch range hood over a 30 inch stove if your upper cabinetry provides enough physical clearance. This wider hood creates a superior capture area that pulls in stray smoke from the front and side burners.
If your range hood is smaller than your stove, smoke and steam will escape into the surrounding kitchen air. This improper sizing leaves your upper cabinets vulnerable to sticky grease buildup and permanent moisture damage.
